Being an inland site, the design for Aquatics Gallery came with its own challenges. The building, designed in a shell shape is intended not only as symbolic representation of the aquatic life, but also as a form that allows connectivity and free movement. The aquarium has three water types - fresh water, brackish water and salt water that are sequentially demonstrated by creating “water worlds”, by location. These are Indian Rivers, South East Asia, Africa, The Americas and Indian Ocean. Worth noting with emphasis is the importance of back of house spaces for the servicing of the tanks and associated living environments of the various species.
Size : 2.5 Acres Builtup Area : 1,92,007 SF Services : Feasibility Study, Programming, Master planning, Building Design - Architecture, MEPF Engineering, Interior Design, Art & Exhibit Curation, PMC, Structure Engineering, Landscape Design, AV/Acoustics, Lighting Design, Life Support System Design (LLS), Infrastructure Engineering Collabration :Kling Consult
Accolade :
2019, International - RoSPA Gold Award by Royal Society for Prevention of Accidents, Great Britain
The Best Architecture Firm category -2020, Aquatic Gallery Project was one of the three projects submitted for the National Award by CWAB Award-2020, India
Bid Excellence Award -2019, Aquatic Gallery Project was one of the three projects submitted for the Award by Tendersinfo Bid Excellence Awards-2019, India
Share ►
Meeting Technological,
Programmatic and
Sustainability
Challenges with
Intuition, Innovation &
Integration
Carving Underwater Experiences into Arid Inland Ahmedabad
Water being a major component of our planet, ‘aquatic life’ was
an obviously impelling section in the Gujarat Government’s
ambitious Science City project for Ahmedabad. India’s
first-of-its-kind aquarium project of 13,000 sq m area conceived
here employed INI’s intuitive design strengths and technical
competence to realize it. It unfolded as the challenge that
inspired a collaborative endeavor by all stakeholders to deliver
design as well as operational excellence. Whereas, creating a
massive water world in hot, dry inland Ahmedabad was itself a
challenge, flawless sustenance of fluid visitor movement and
perennial maintenance of a conducive conditions for live

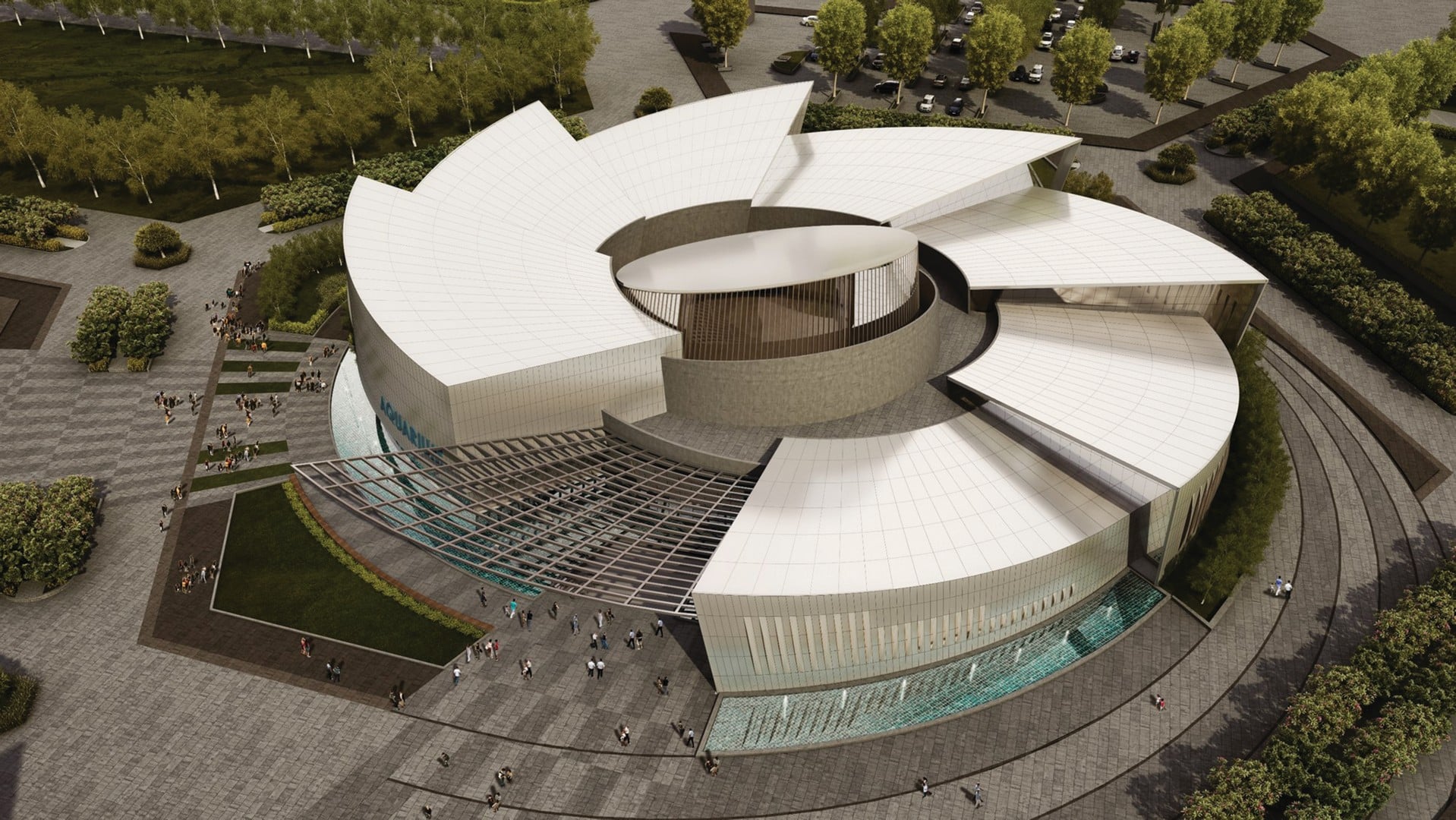

underwater exhibits were also critical. The architectural resolution

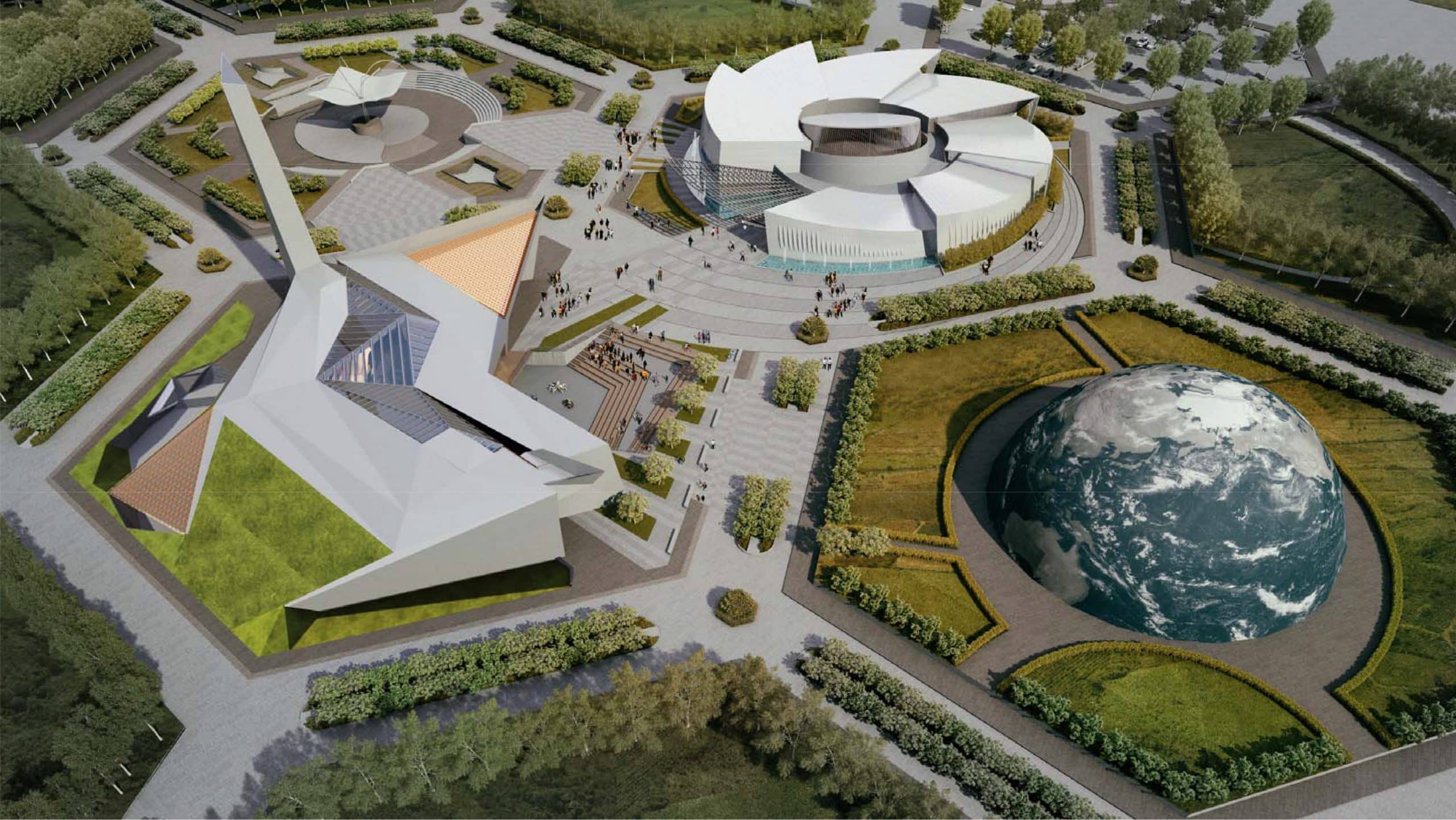

emerged through marine-life inspired form with a layout of
various aquatic galleries nested in multiple wings swirling out

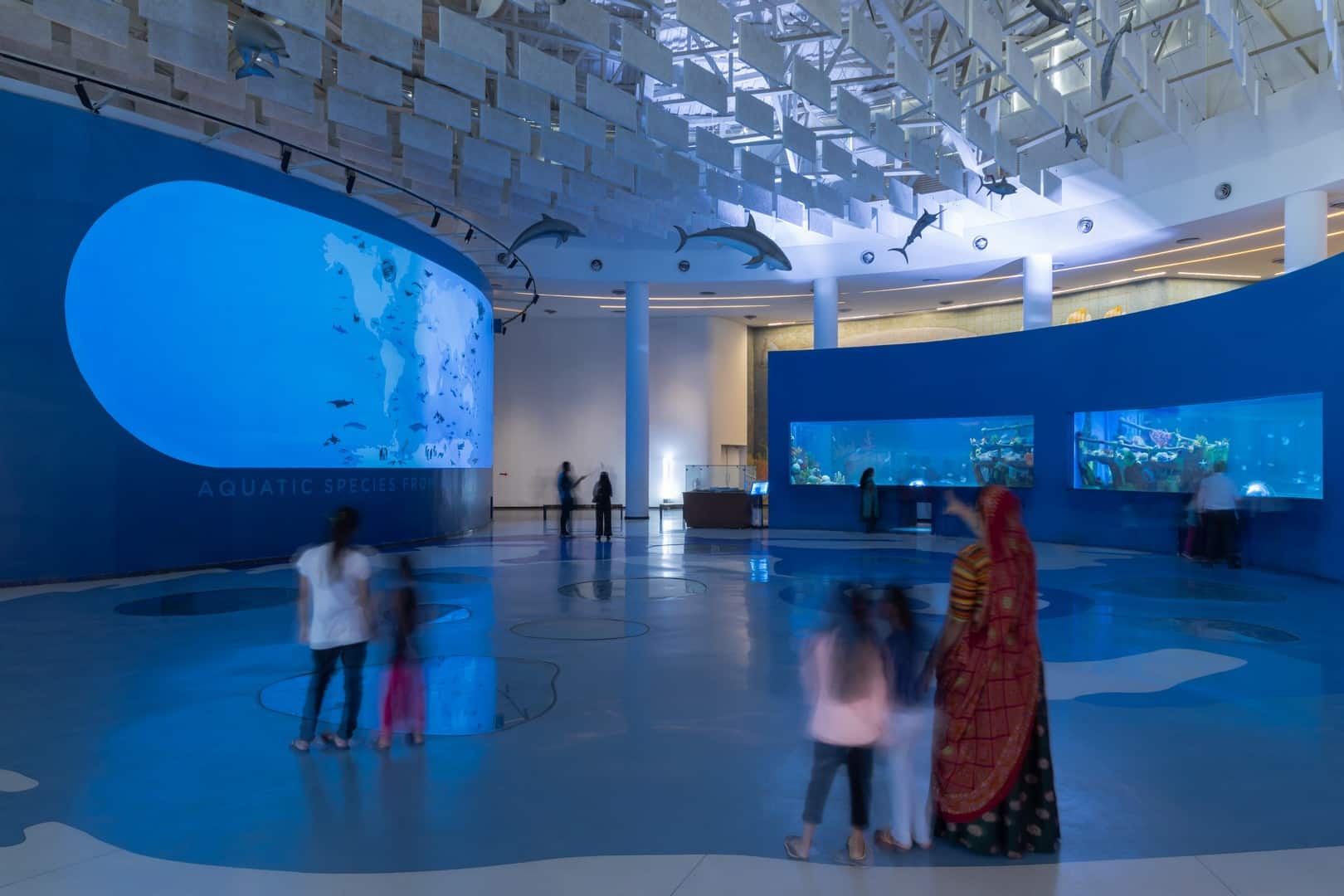

from around a central circular atrium bearing the visitors’ arrival

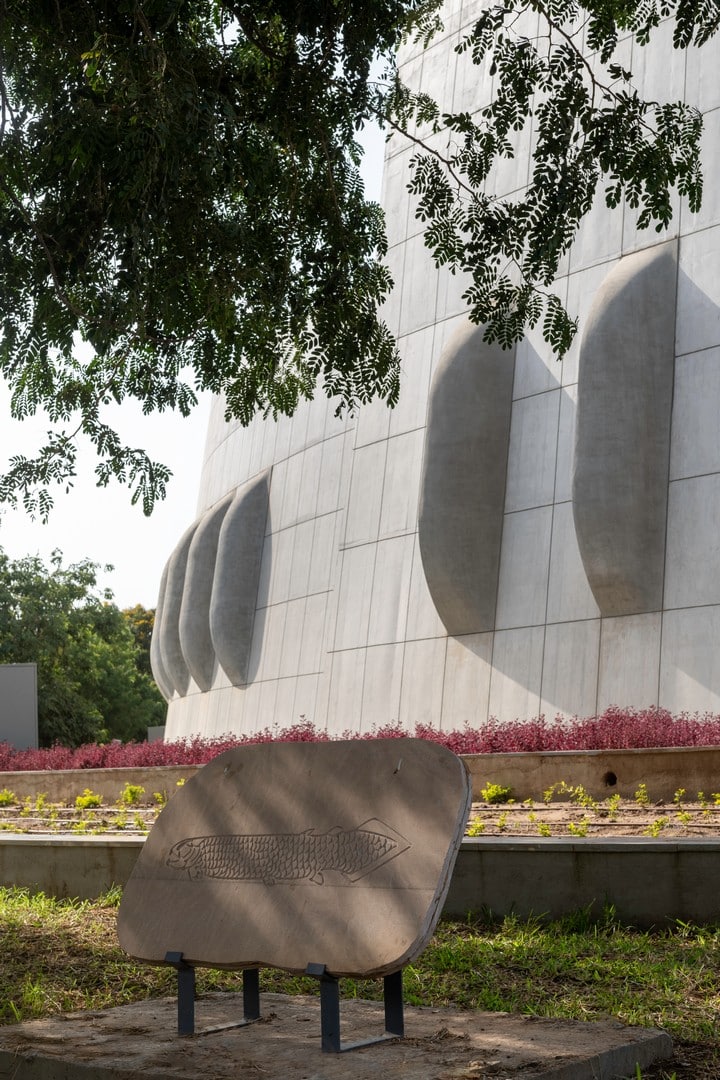

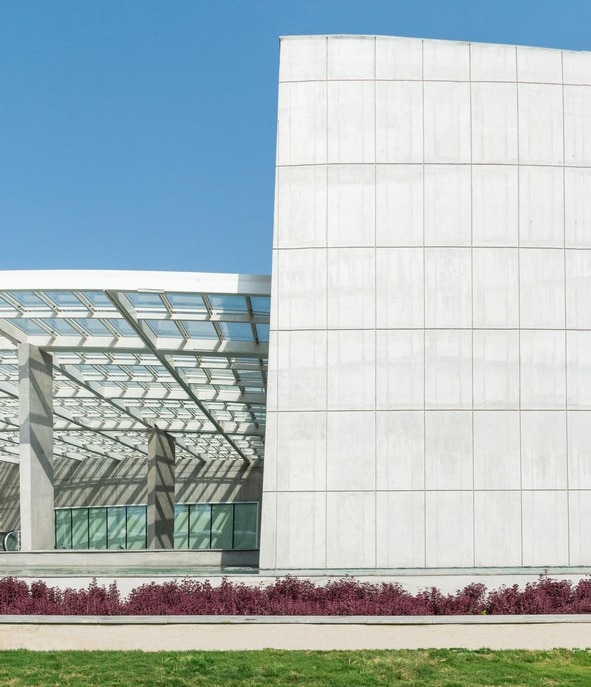

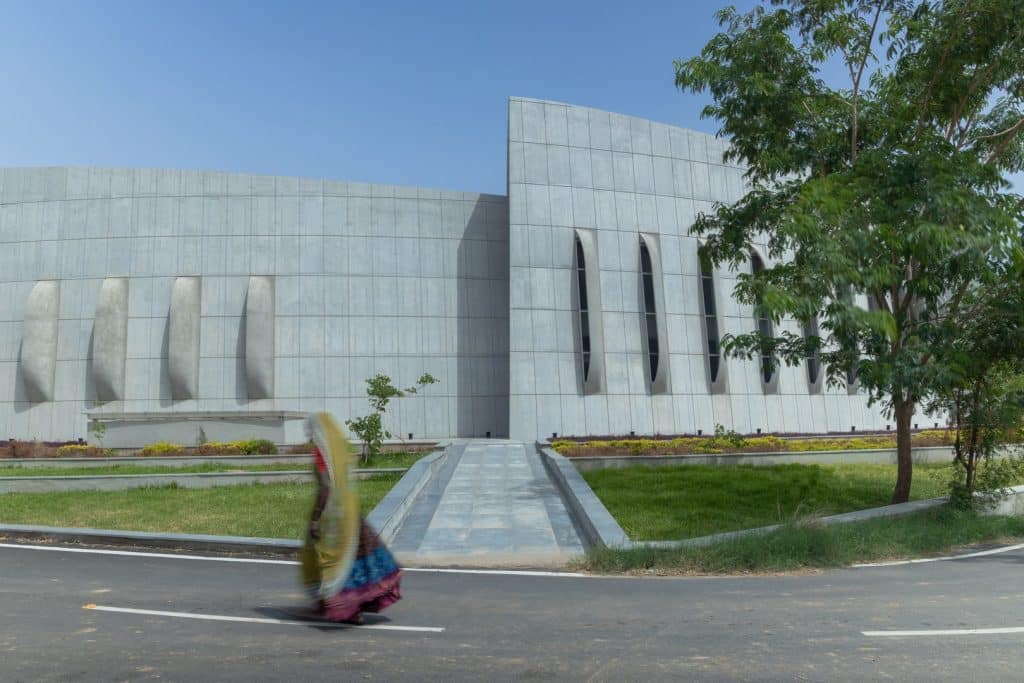

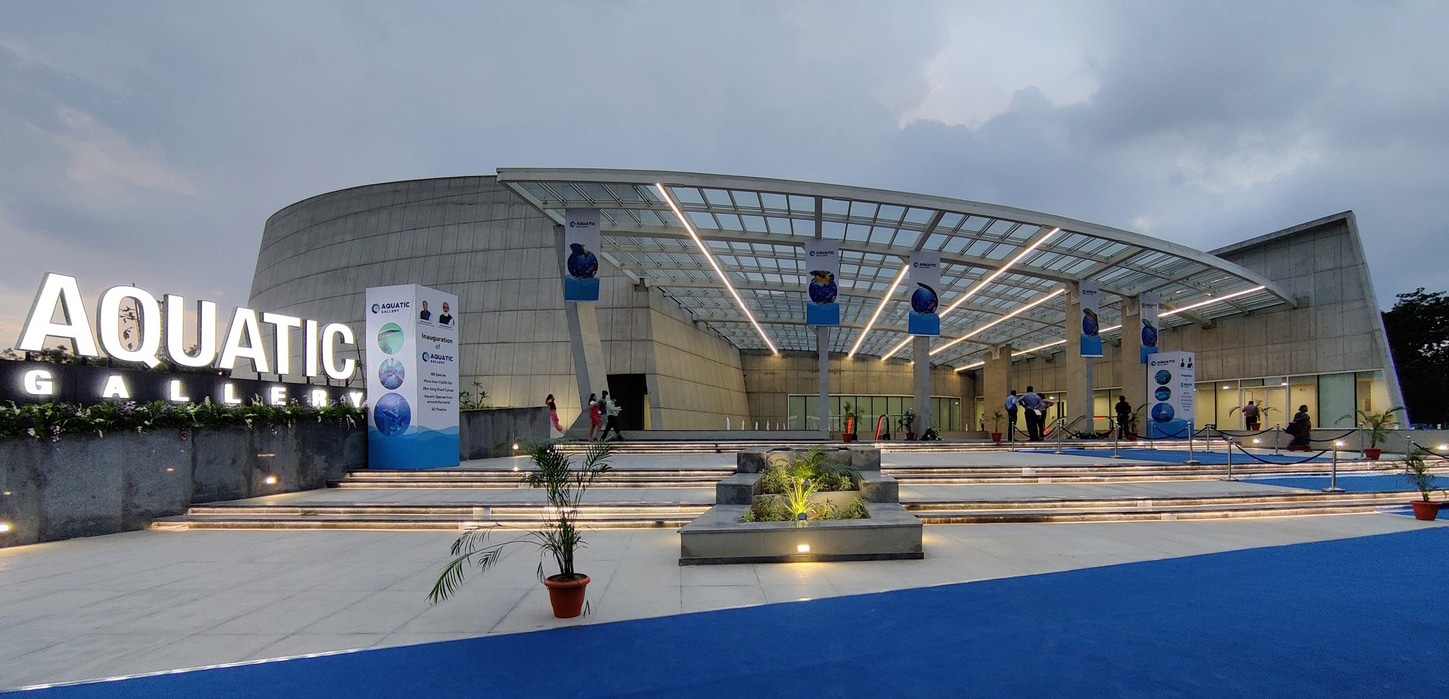

lobby. The exterior clad in exposed concrete invokes the chitinous
shell exterior and the surrounding waterbodies complete the
visual mimetic.
Get sucked into Immersive Edutainment

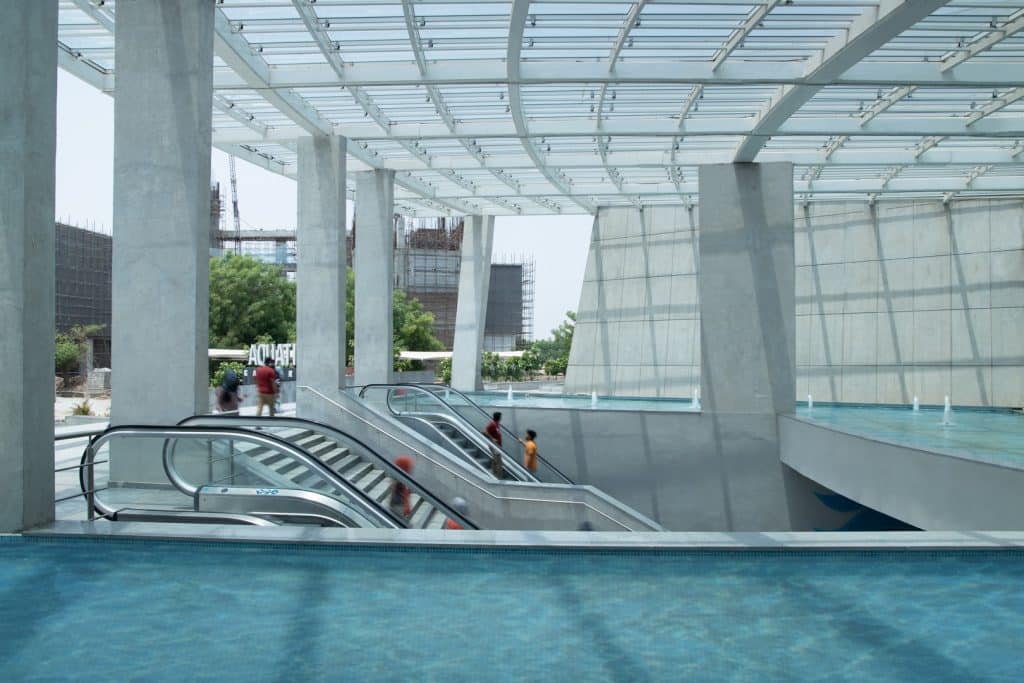

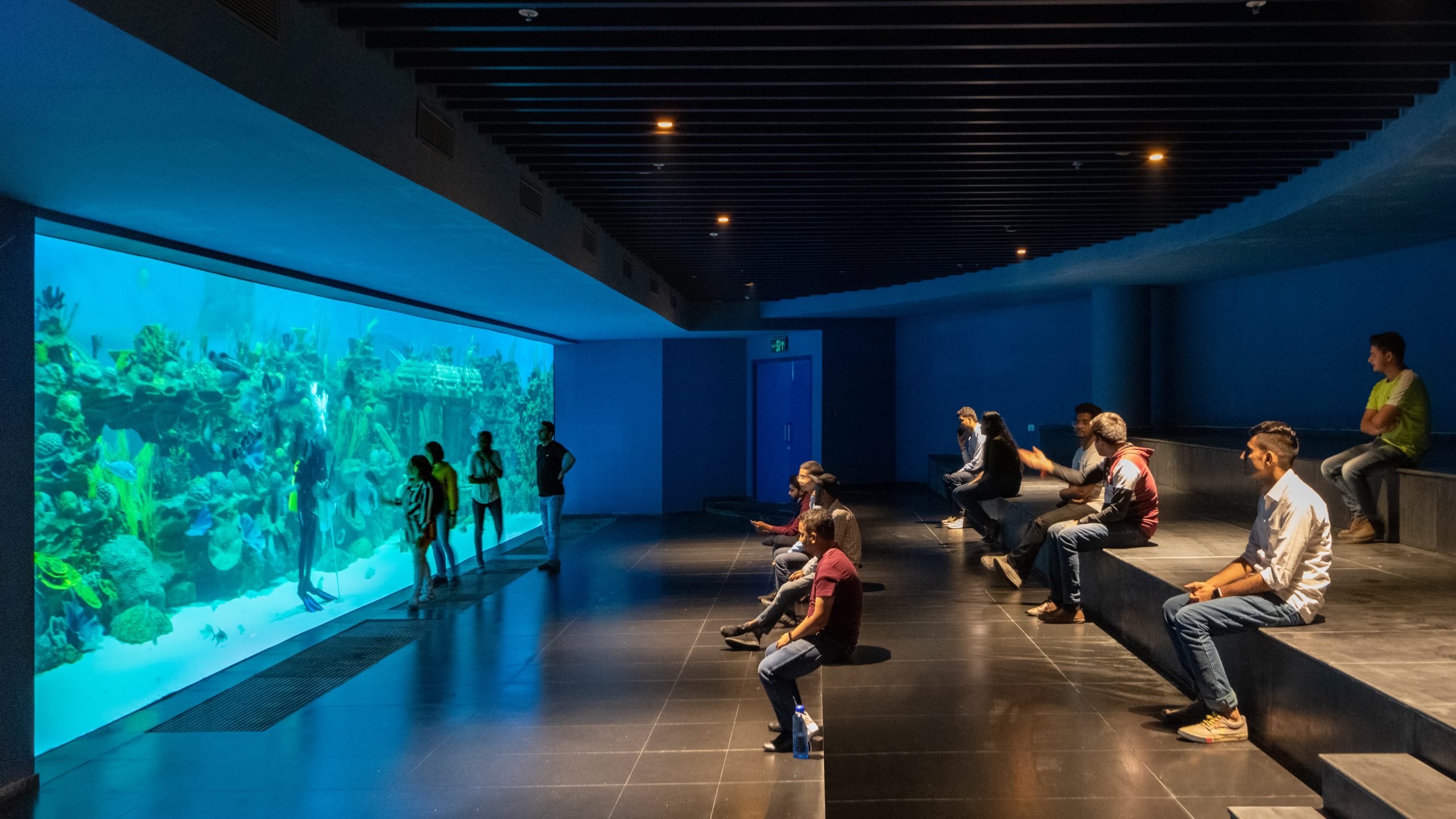

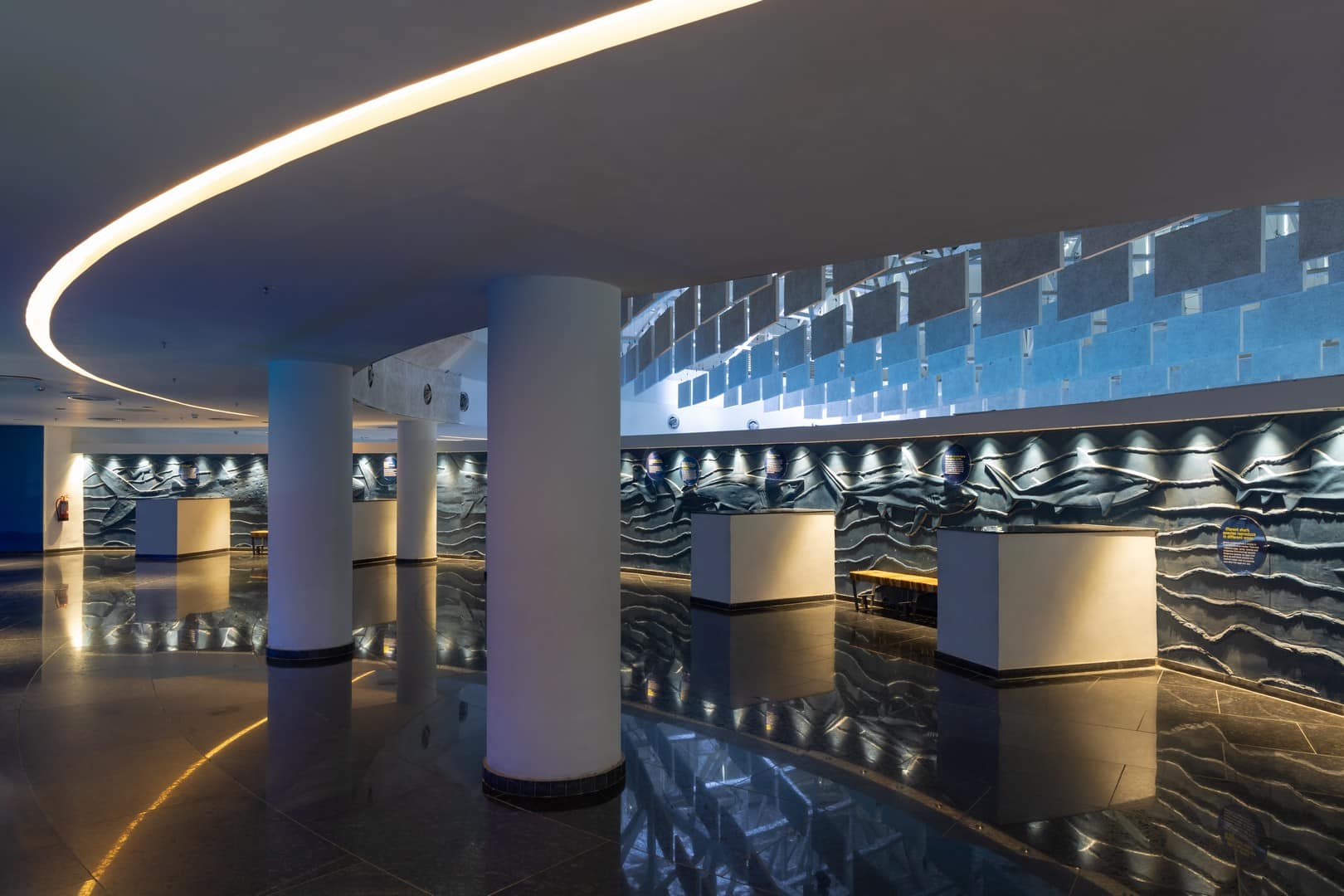

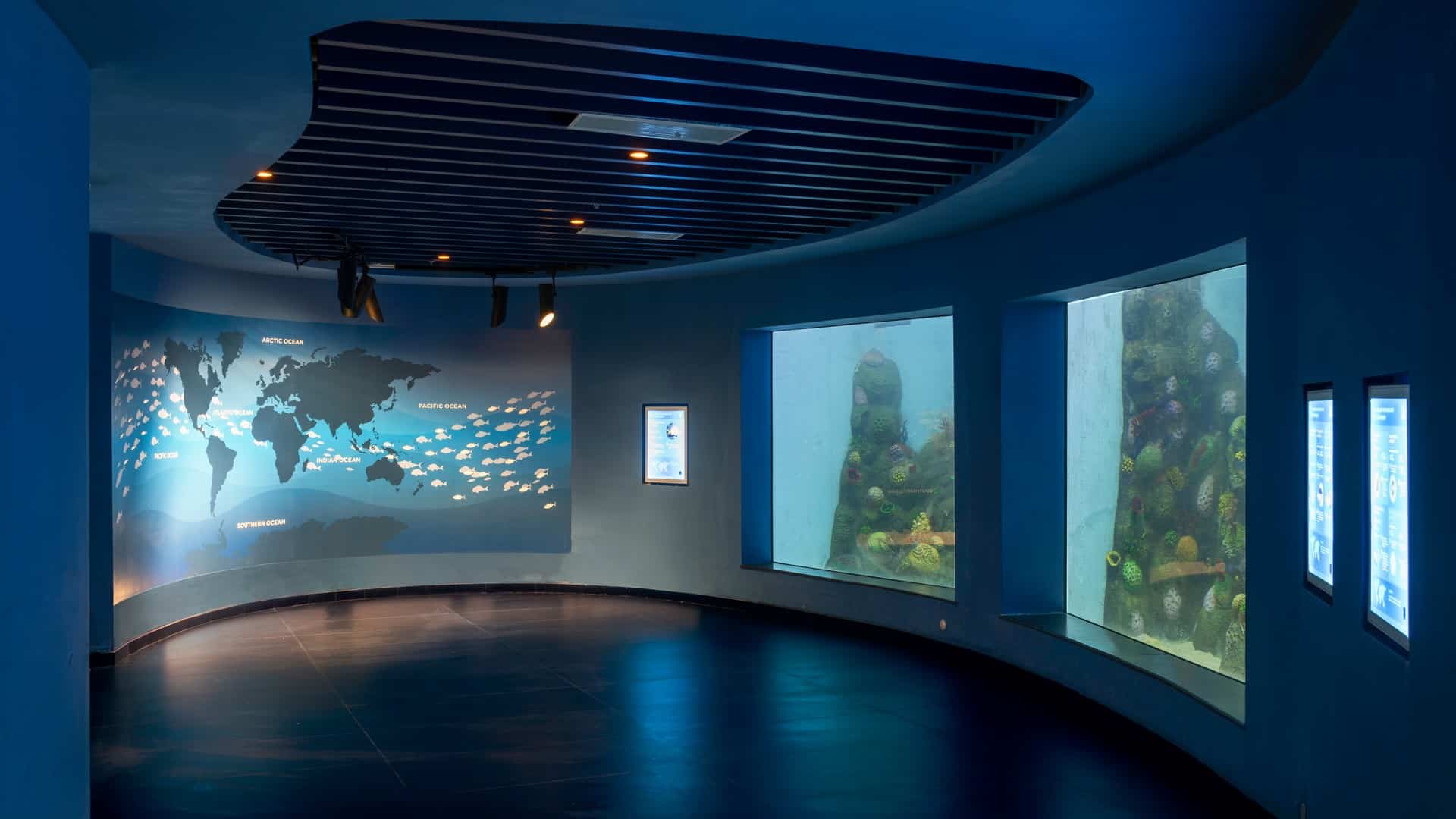

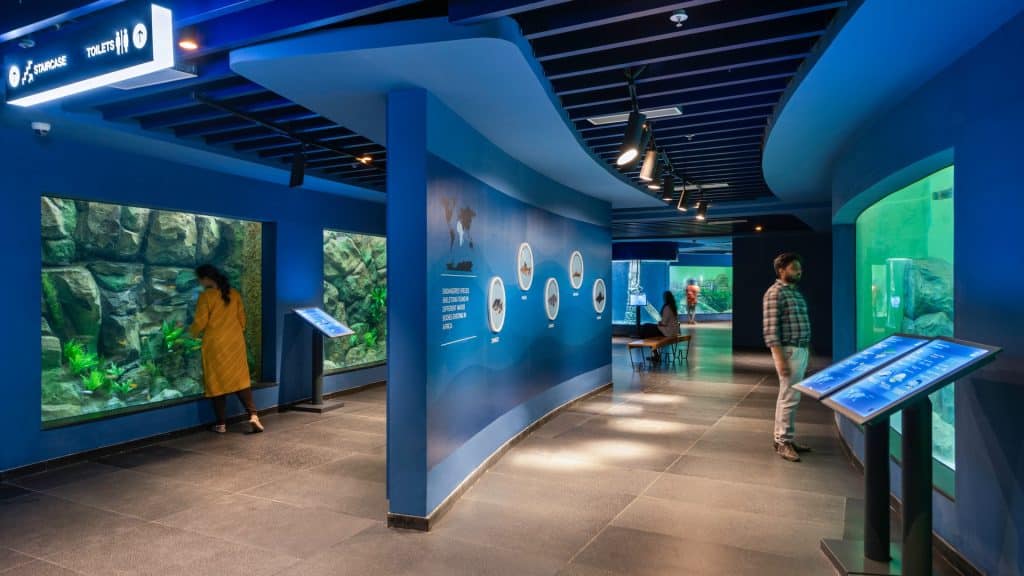

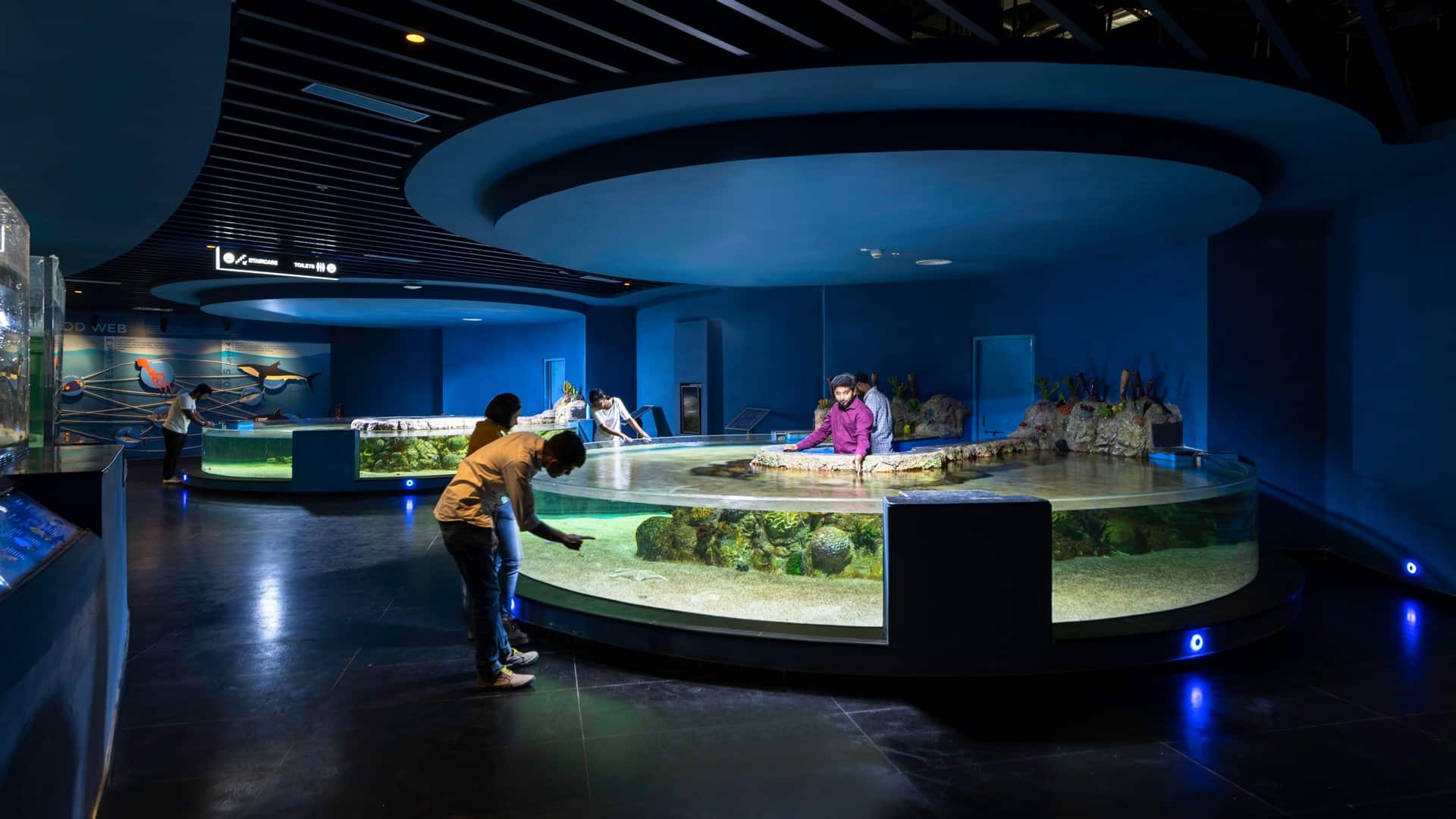

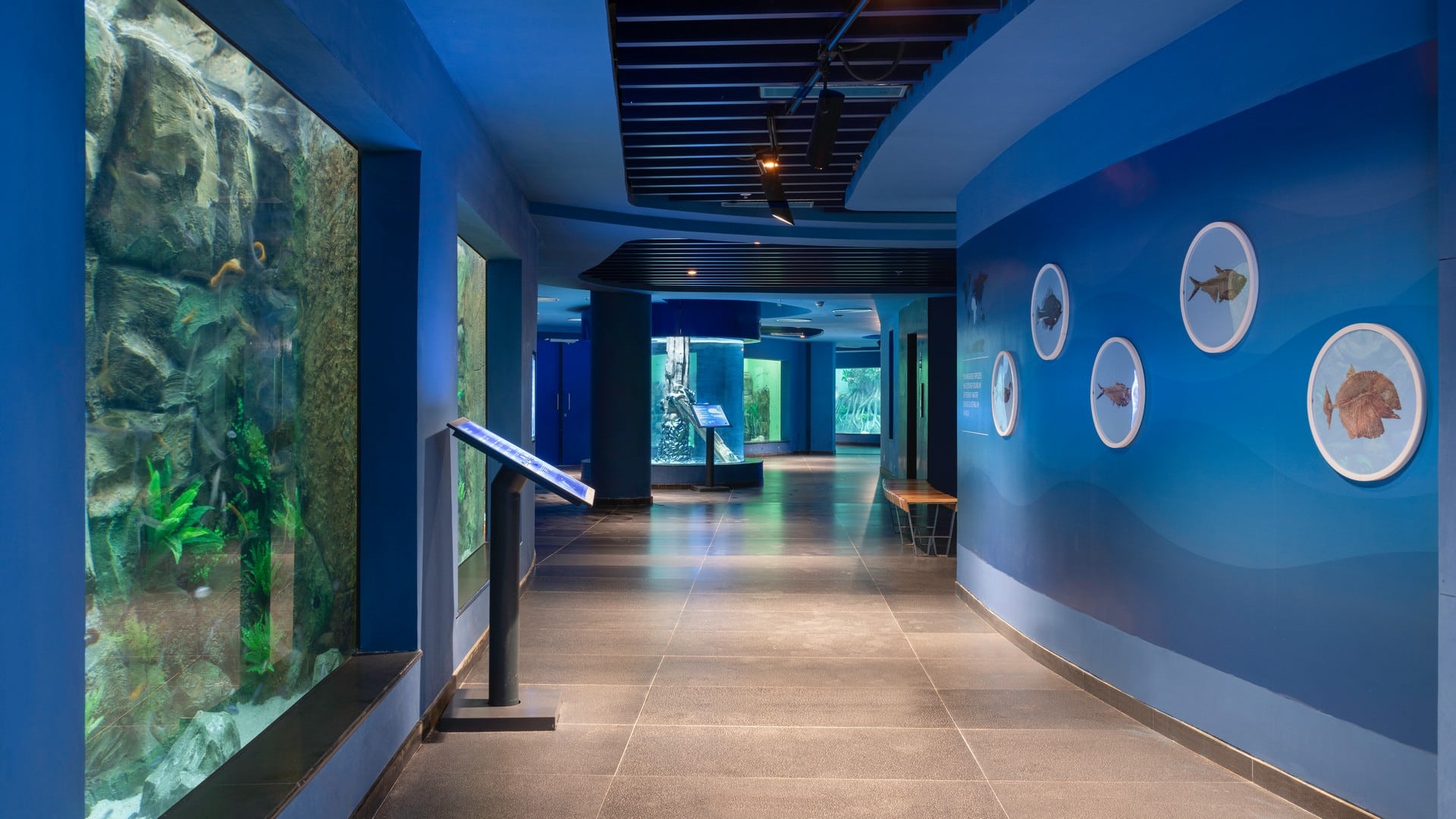

The entry in an eastern curve leads, through an underwater transparent tunnel building up a preview

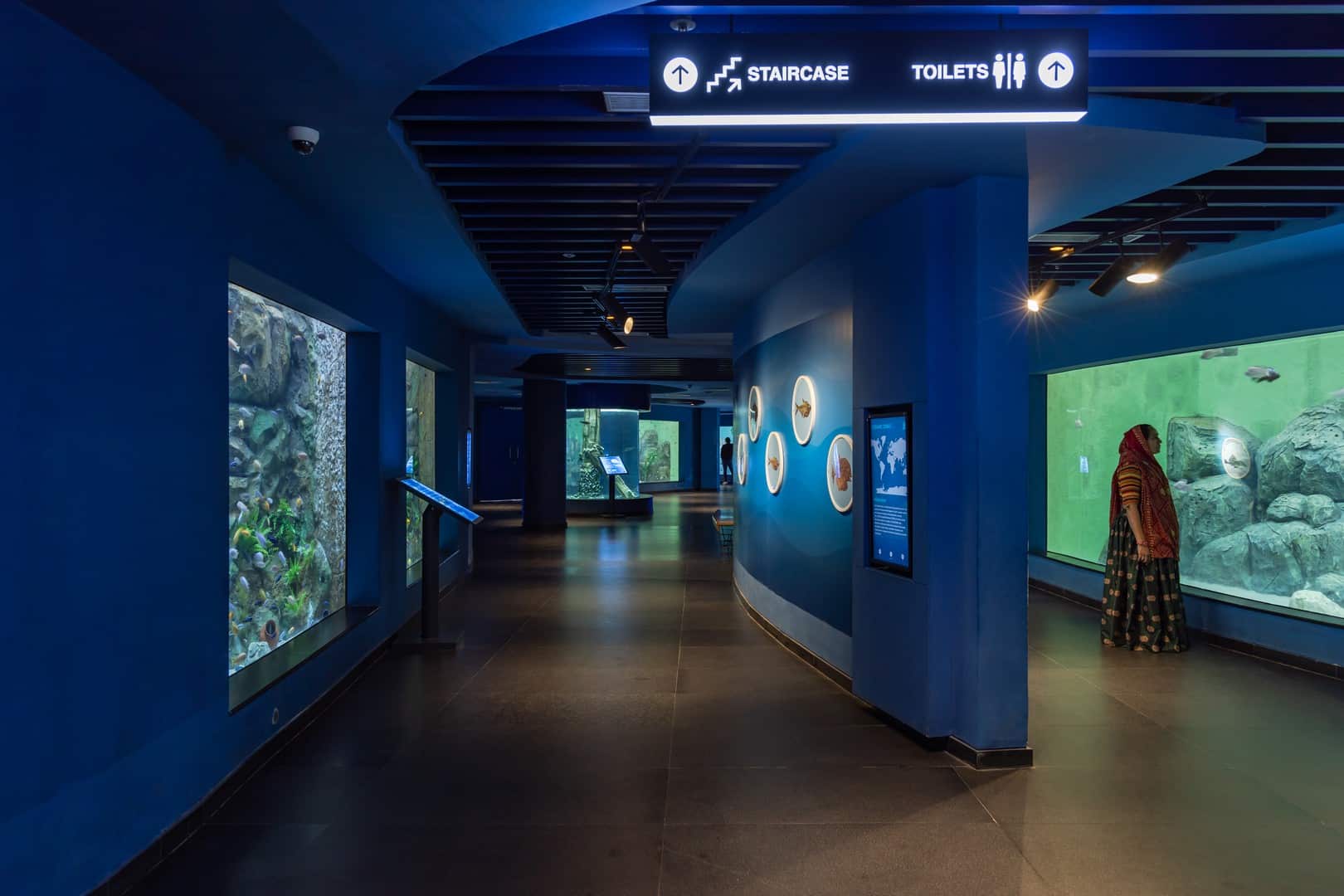

to the show inside, into the arrival lobby in the atrium at the building’s core. Multiple levels and wings

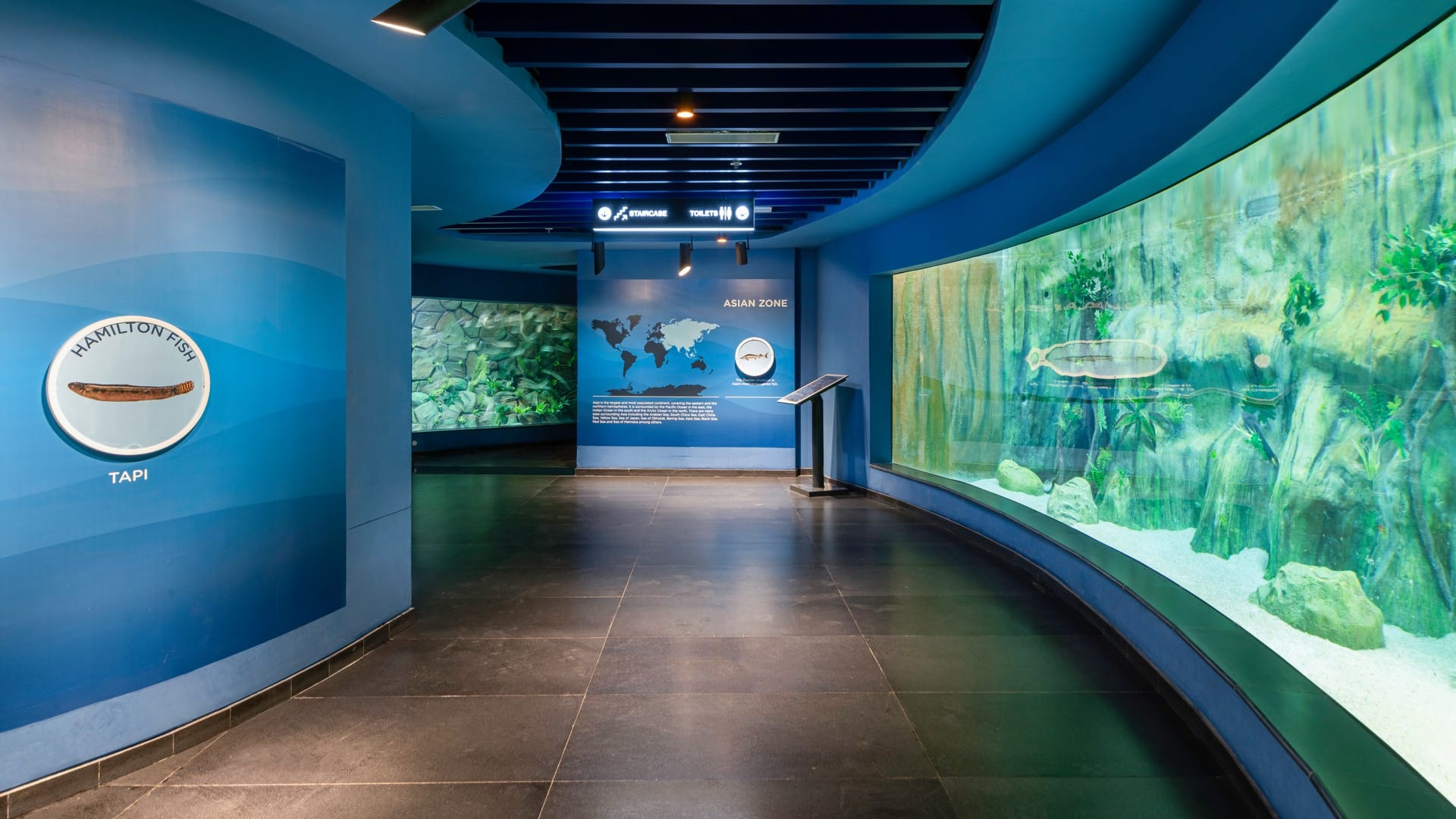

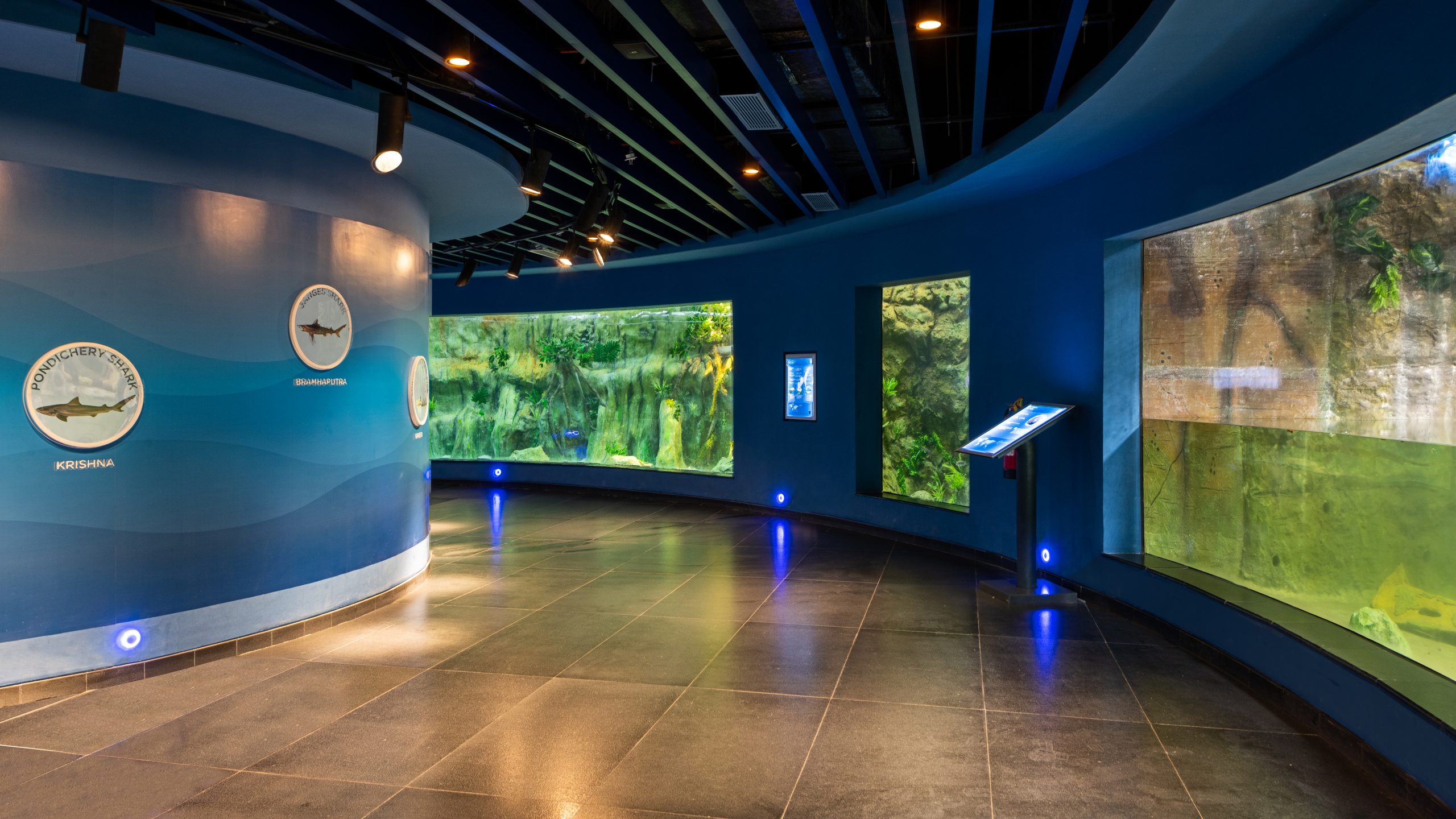

of display sequentially showcase aquatic life from fresh, brackish and saline waters categorized as

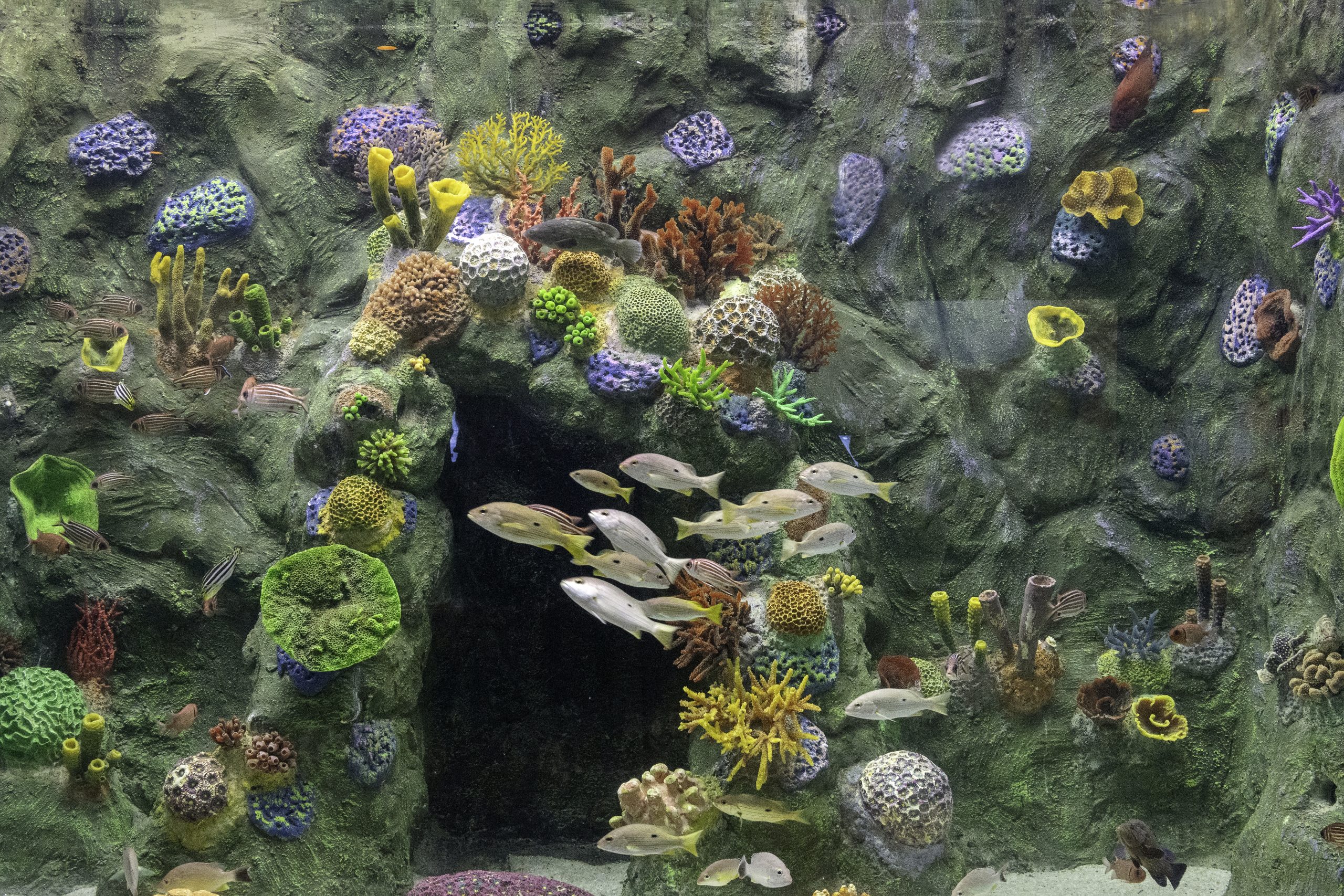

Indian rivers, South East Asia, Africa, the Americas and the Indian Ocean. This tour of more than 80
tanks of greatly varied sizes housing around 12000+ aquatic creatures of 181 species is supported by

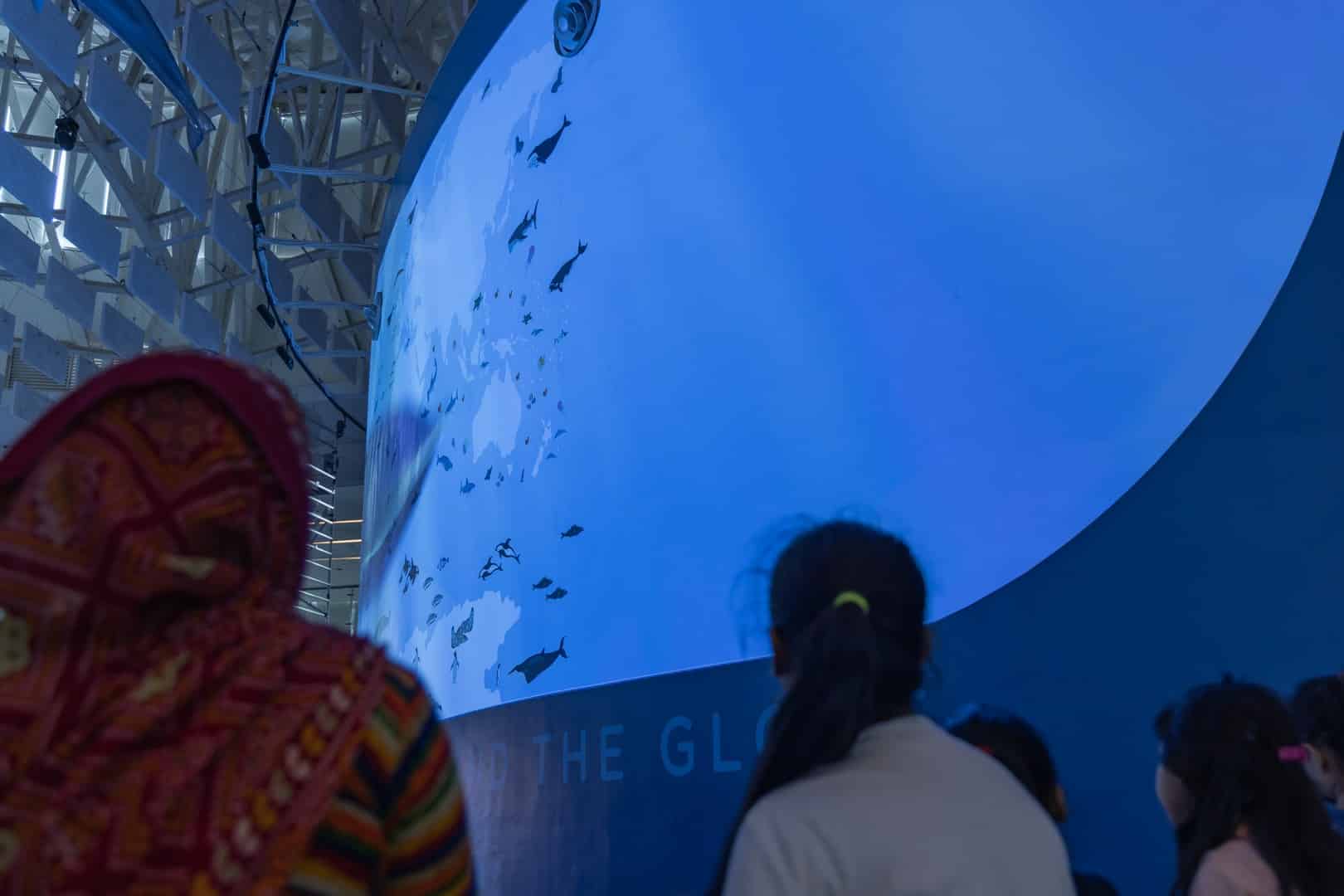

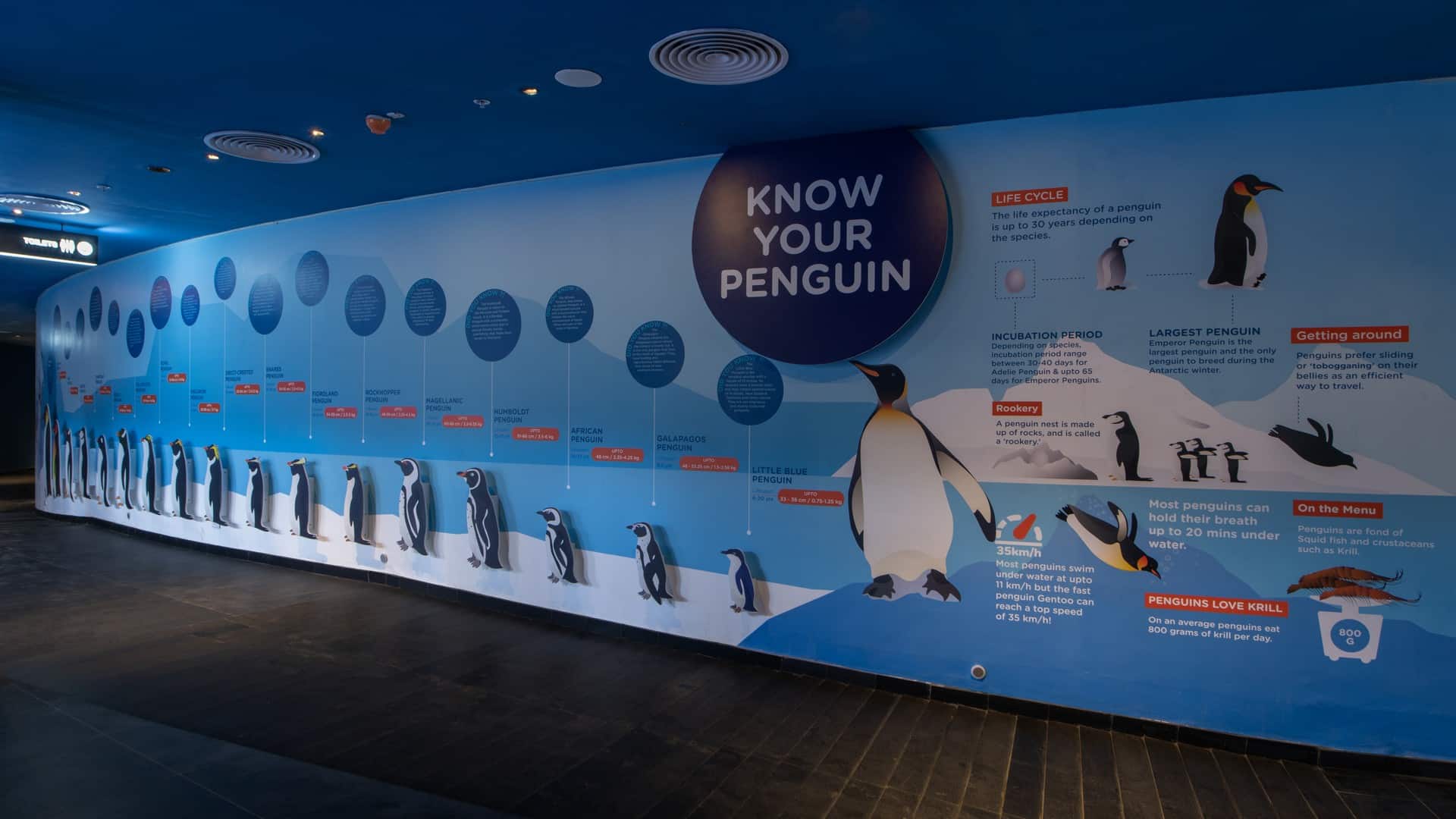

informative graphics, projection, movies, AV and interactive technologies to create an immersive

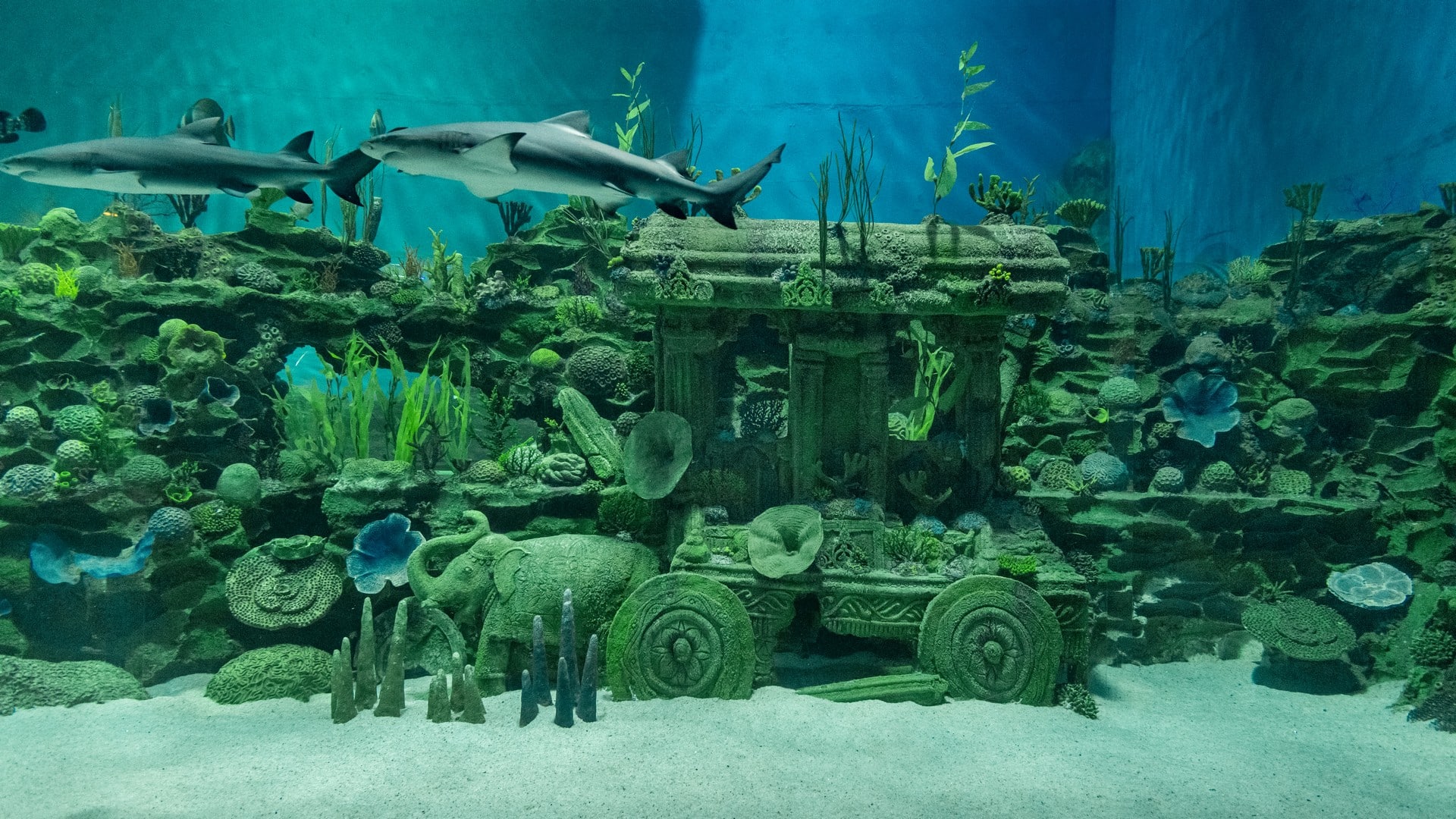

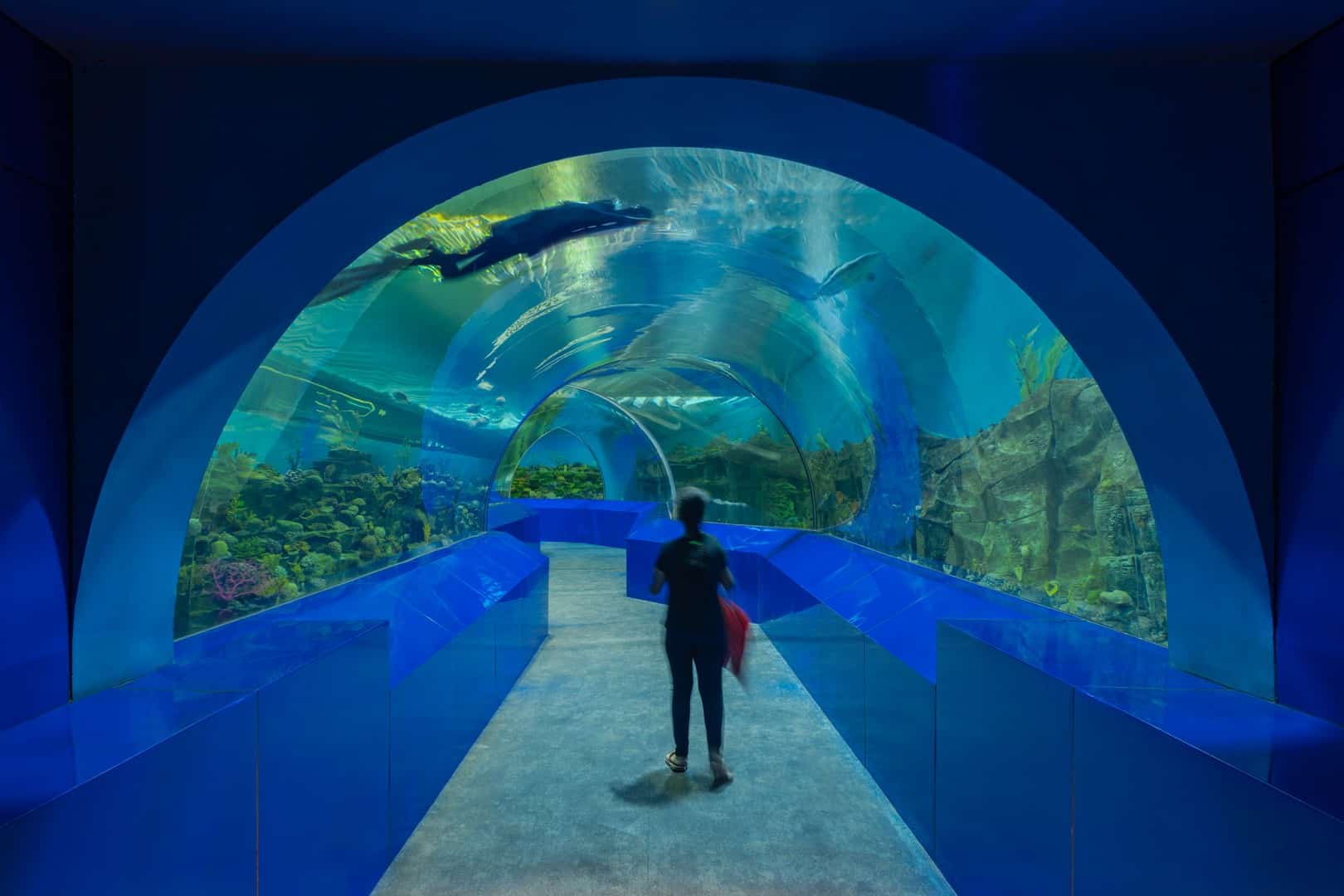

entertaining and educational experience. An oceanarium with a 30 meter transparent tunnel, India’s
largest, taking visitors through shark-filled ocean waters promises to be singularly memorable.
Sustainable and State-of-the-Art
The western entrance reserved for support and service staff and goods ensures smooth,
uninterrupted service and maintenance of the tanks and their inmates, and of filtration plants, labs, and

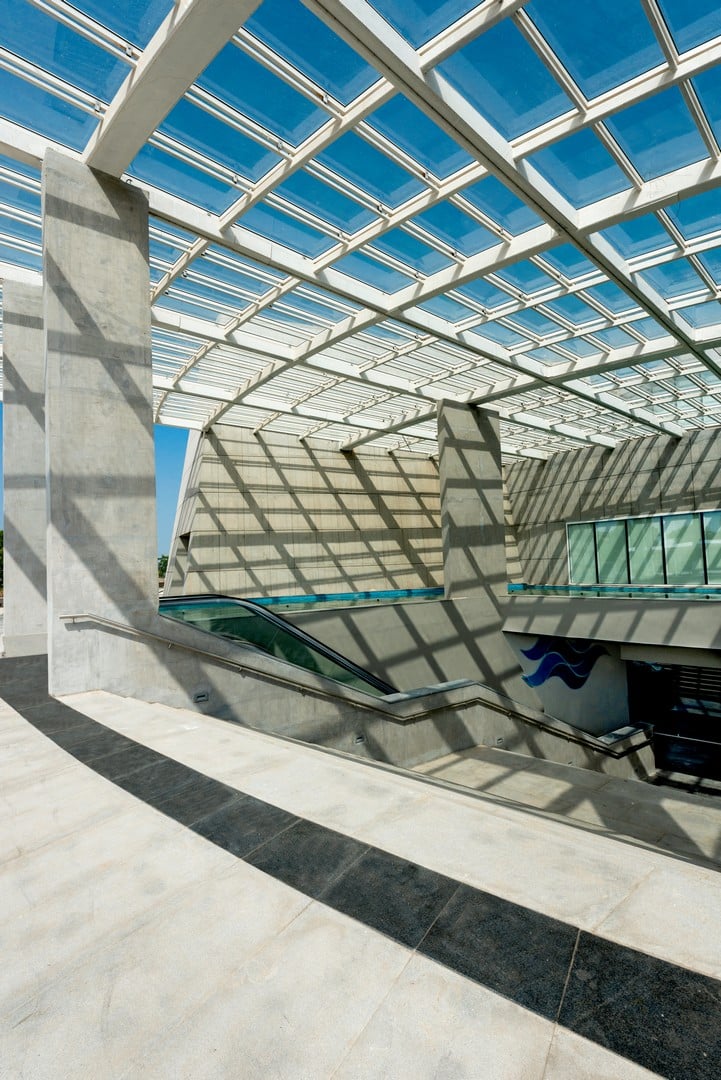

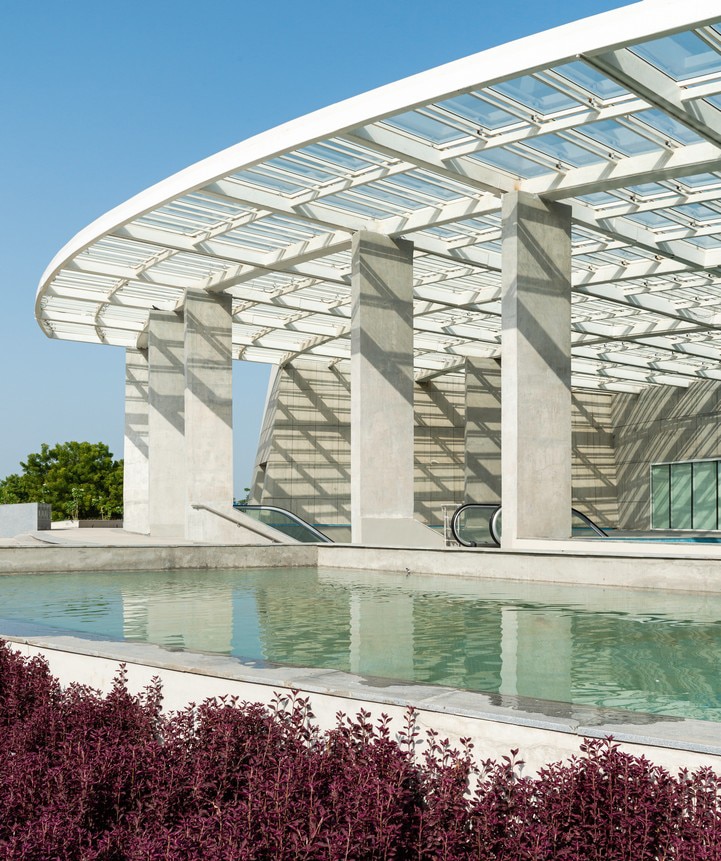

quarantine zones. Sun shading ensured by higher southern wings, the atrium roof’s southward slope
accommodating northern clerestory windows, and calibrated façade glazing – all optimize the heat-
light balance. Sustainability is further ensured by use of solar panels, insulated roof, fly ash bricks and

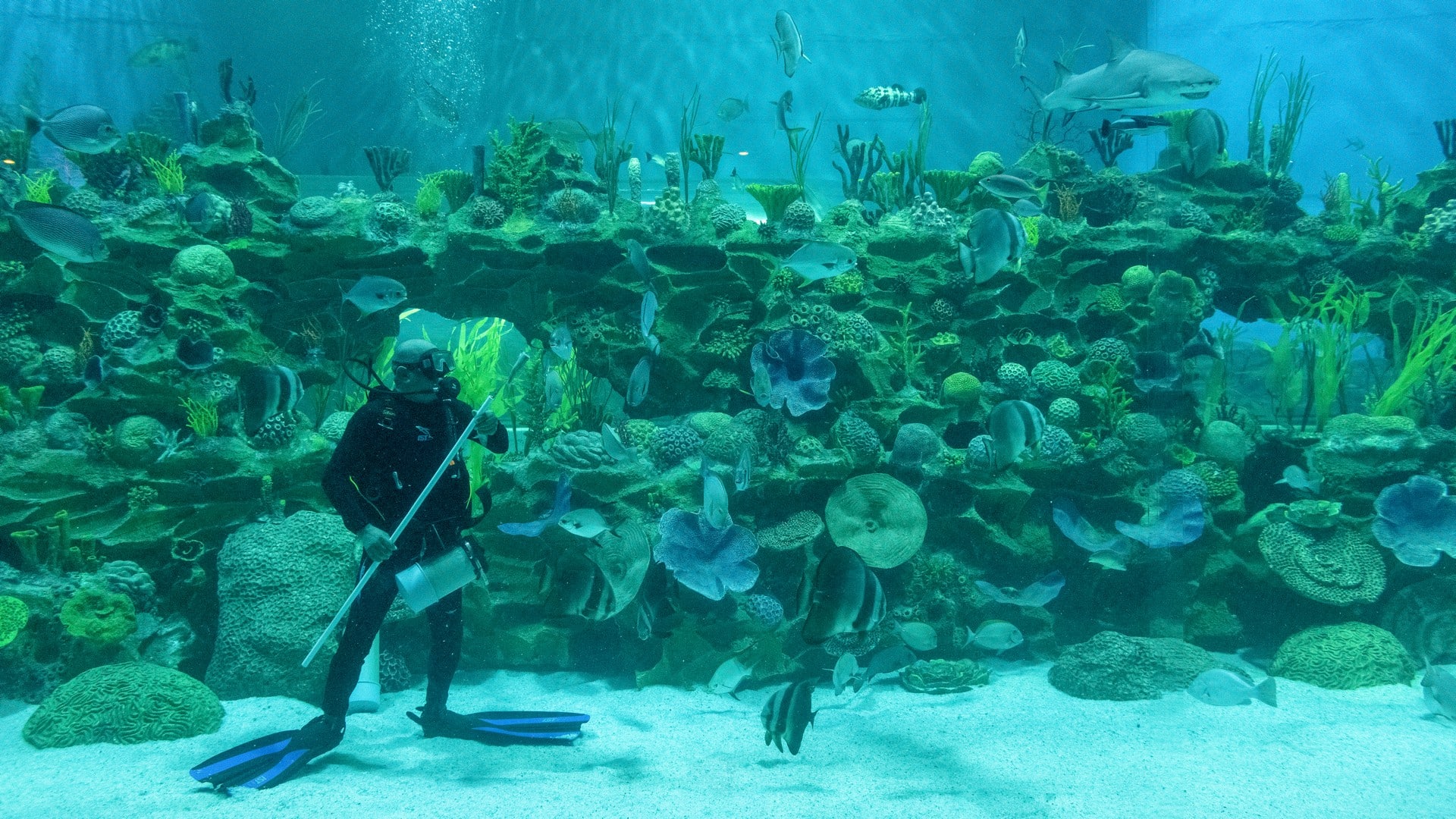

rainwater harvesting systems. Aquaria of this scale involve a clutch of operative technology like foam
filters, sand filters, ozone generators, and life support systems to provide the water quality, chemistry,
biology, temperature, turnover and quantity required for each live inmate. The obviously excessive
load of energy required for these has been efficiently compensated by integrated energy efficient
systems that reduce consumption by 30%.
Lower Floor Program Diagram
Upper Floor Program Diagram
"Education that’s Immersive, Attractive, Entertaining, Accessible, State-of-the-Art and Sustainable."
